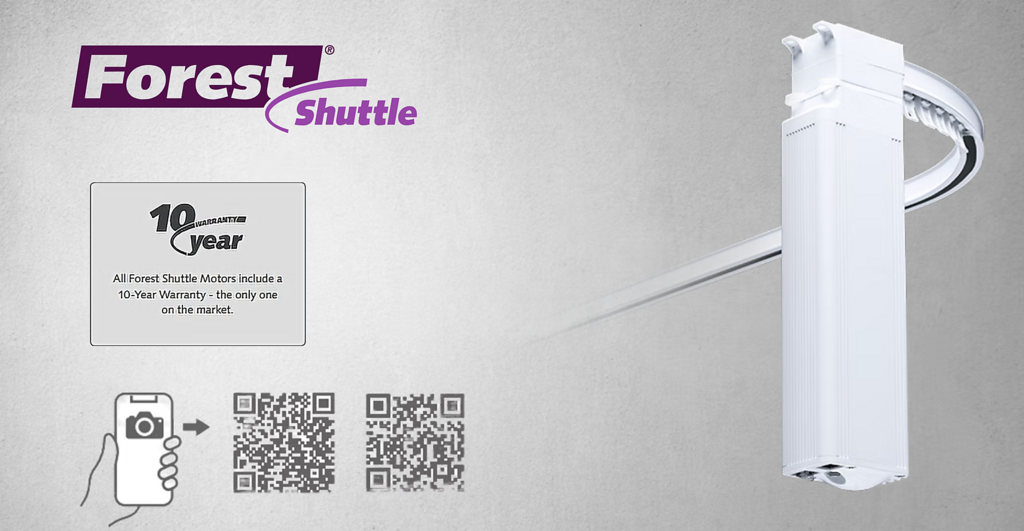

Forest Motorised System -  Shuttle Motor

Smooth and noiseless belt driven motorised curtain track system

Brochure

Dimensions

Product Information

The Forest Shuttle motorised system is available in two types:

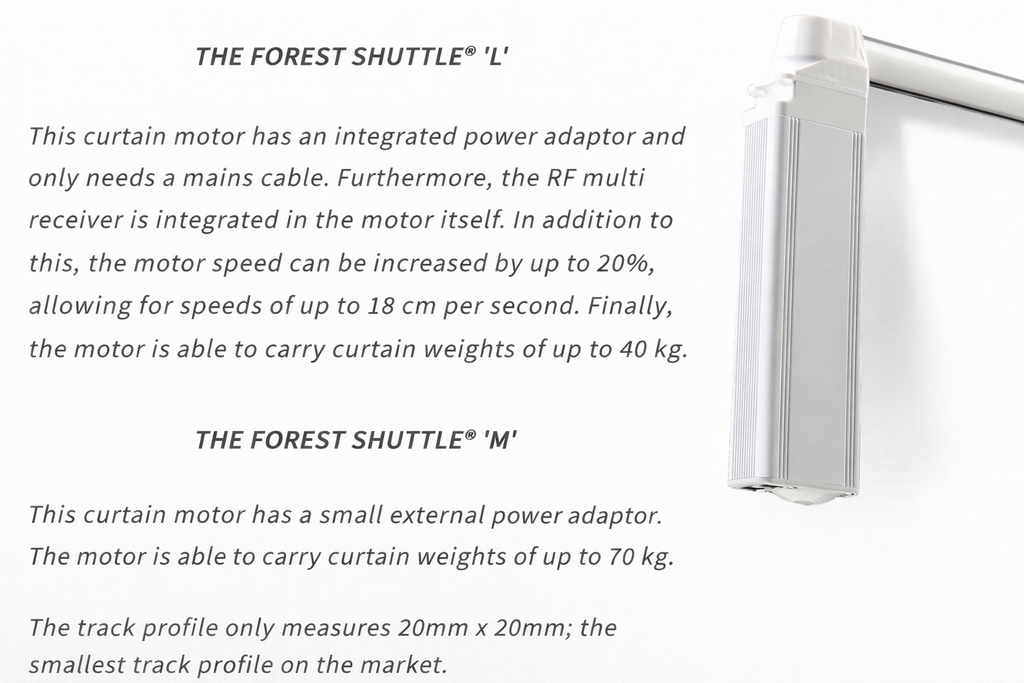

Shuttle M for Heavy fabrics and the Shuttle L for Light weight Fabrics and short tracks.

Both motors offer these functions:


            •   Touch Impulse Technology; gently pulling the curtain by hand will activate the motor.
            •   Integrated Emergency Control with automatic declutch in case of power failure, to ensure manual operation of the curtains.
            •   Modular motor; different modules can be attached for various control options: Radio Frequency, wall switch, infrared, domotics, building/hotel automation, serial communication, Z-Wave, etc.
            •   Ultra silent motor.
            •   Slow start and slow stop.
            •   Full automatic setting of the limits.

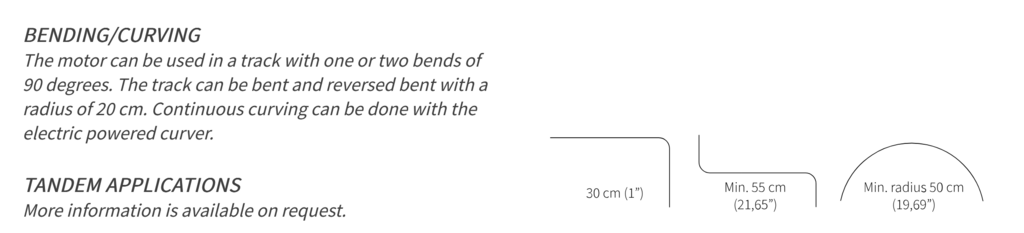

            •   Bending to a minimum radius of 200 mm and curving to a minimum of 500 mm.
            •   Programming of intermediate positions possible.
            •   Touch Impulse sensitivity adjustable; high sensitivity, low sensitivity, and off.
            •   Stack-back position programmable to every desired setting.
            •   FMS track and components available in white and black.
            •   FES Easysnap, Ripple 100 (EasyFlex) and Standard Carriers available.
            •   Kevlar-based drive belt.
            •   All KS brackets applicable.
            •   Motors can also be used on MRS Motorised Rod System.
            •   Tandem motor application possible as well.

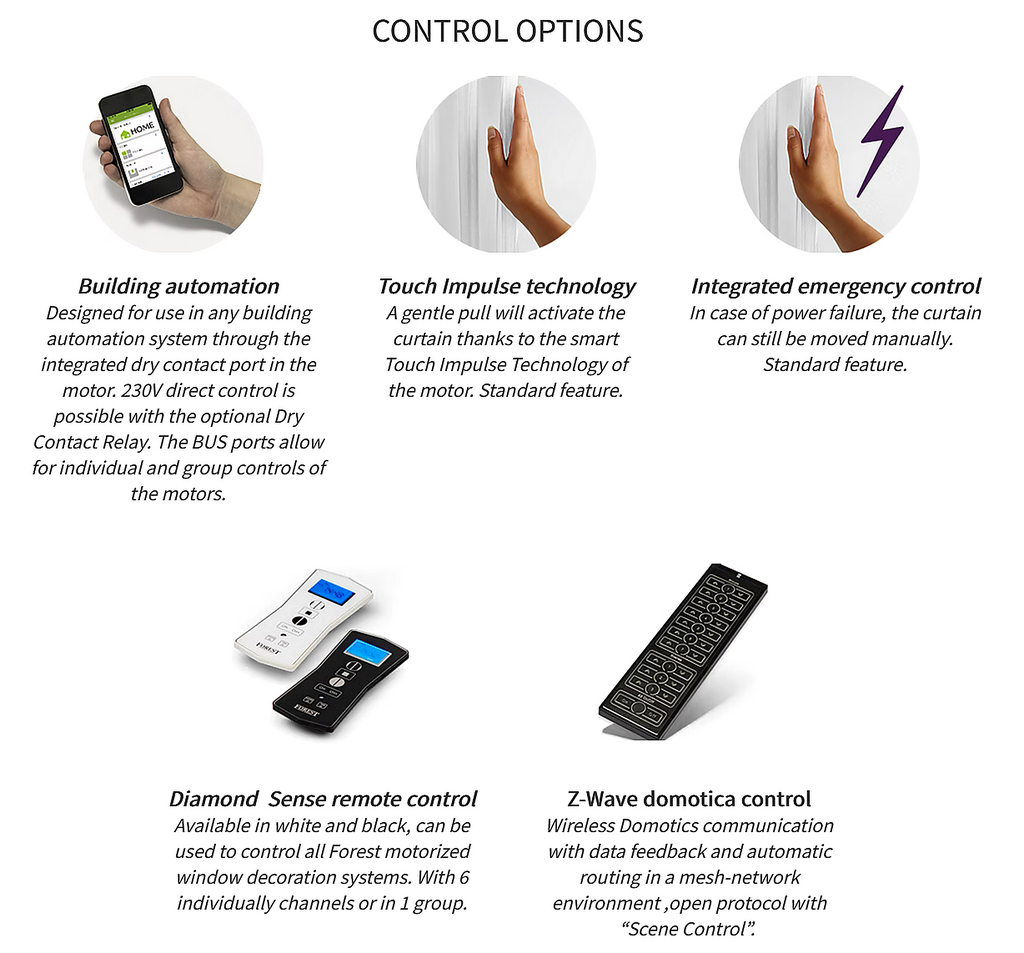

Control Options

Applications
