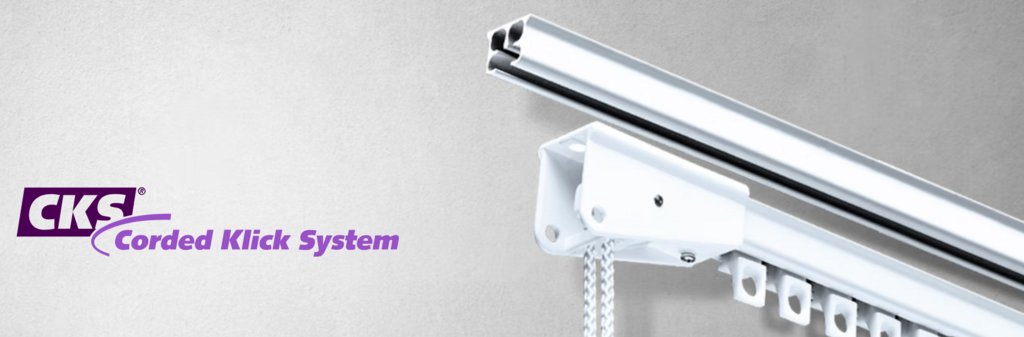

CKS Corded Klick System

Highly efficient cord traversing system with separate internal cord channels; preventing cord sag and eliminating cord tangle.

Brochure

Dimensions

Product Information

  •   Highly efficient cord traversing system with separate internal cord channels; preventing cord sag and eliminating cord tangle.
  •   Quick installation with “Smart Klick” brackets for wall and ceiling applications.

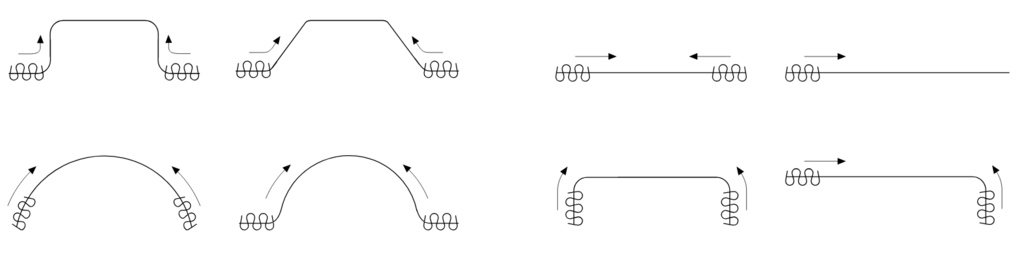

  •   Bendable; it can be bent and reverse bent by using a 10 cm radius or continuously curved.
  •   Heavy duty clickable carriers - UV protected - for smooth and easy traversing.
  •   Offset shape for straight hanging pleats.
  •   Can also be used for EasyFlex/Easysnap drapery systems.
  •   Maximum fabric weight: ± 6 kg per metre.
  •   Colours available: white, silver and black.
  •   Custom made to your requirements with max length of 5 metres.
  •   Track finish: chromated powder coated with a factory applied patented dry lubricant.




Profile

  •   Aluminium Extrusion.
  •   Weight: 202 grams per meter.
  •   Dimensions: 20 mm x 14 mm

For Use In:
    Hotels, offices, residences, boats, campers, planes, any location where an efficient cord traversing system is required

Applications
