Design System

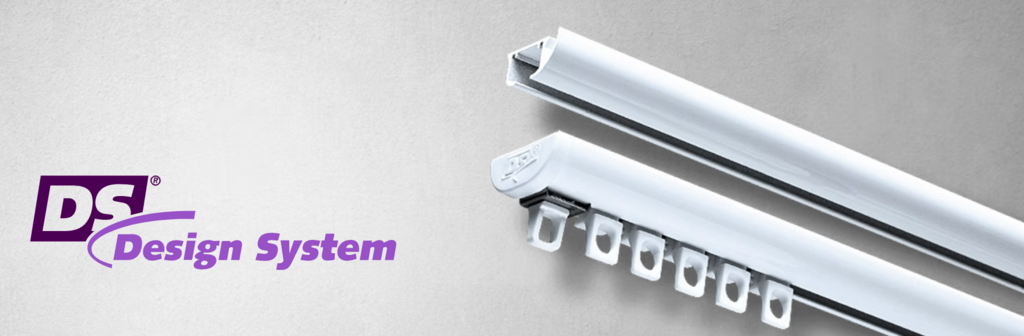

Highly efficient hand drawn system for all types of medium and light weight draperies.
Quick installation with “Smart Klick” brackets for wall and ceiling applications.

Brochure

Dimensions

Product Information

  •    Elegant and aesthetically pleasing hand drawn system for all types of medium weight draperies.
  •    Quick installation with “Smart Klick” brackets for wall and ceiling applications.
  •    Bendable; it can be bent and reverse bent using a 10 cm radius or continuously curved.
  •    Concealed brackets.
  •    Same brackets as used with KS system.
  •    Heavy duty clickable carriers - UV protected - for smooth and easy traversing.
  •    Can also be used for Ripple 100, EasyFlex and Easyfold/Easysnap drapery systems.
  •    Maximum fabric weight: 8 kg per metre.
  •    Colours available: white, silver and black.
  •    Custom made to your requirements.
  •    Track finish: chromated powder coating with a factory applied patented dry lubricant.



Profile

  •   Aluminium Extrusion.
  •   Weight: 170 grams per meter.
  •   Dimensions: 24 mm x 11 mm.

For Use In:
  Hotels, offices, schools, healthcare, residences, boats, campers, planes or anywhere an efficient hand drawn system is required.

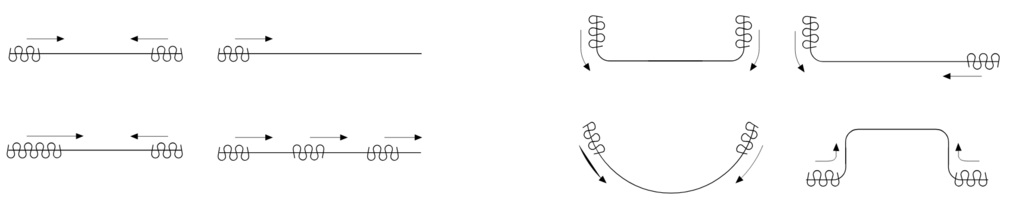

Applications
