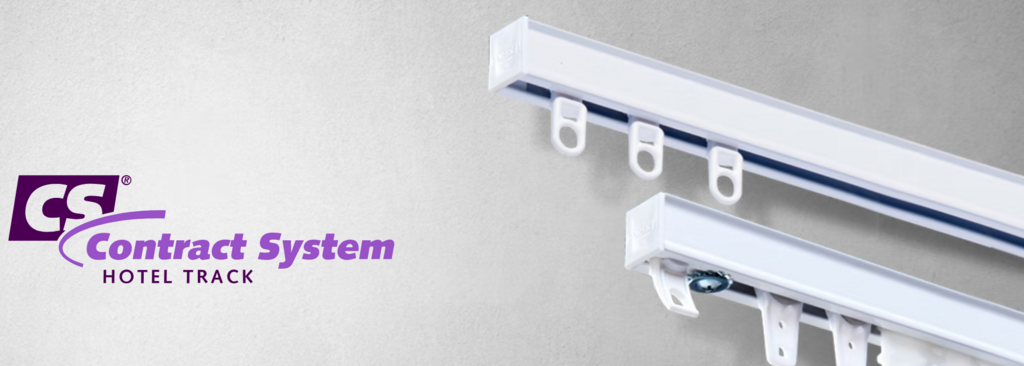

CS Contract System & CS Recess

Heavy duty hand drawn system for medium and heavy draperies.

Brochure

Dimensions

Product Information

  •    Heavy duty hand drawn system for medium and heavy draperies.
  •    Bendable; it can be bent and reverse bent using a 20 cm radius or continuously curved.
  •    Heavy duty clickable carriers, UV protected. Can also be used with ball bearing carriers.
  •    Ideal for use with overlap masters and flick sticks which can be mounted behind or in front of draperies.
  •    Can also be used for Ripple 100 and Easyfold/Easysnap drapery systems.
  •    Maximum fabric weight: 15 kg per metre.
  •    Colours available: white, silver and black.
  •    Track finish: chromated powder coating with a factory applied patented dry lubricant.
  •    Custom made to your requirements.




Profile

  •   Aluminium Extrusion.
  •   Weight: 235 grams per meter.
  •   Dimensions: 20 mm x 20 mm.

For Use In:
 Hotels, motels, offices, schools, healthcare, residential, any location where a heavy duty hand drawn system is required

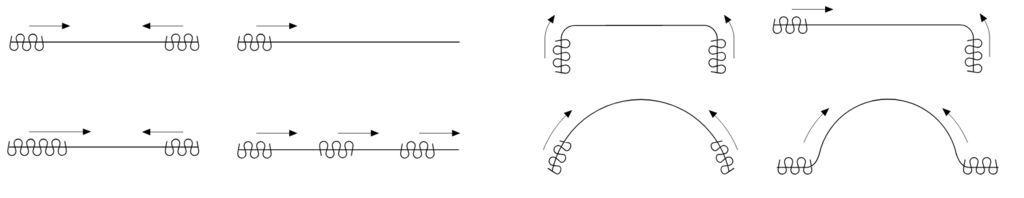

Applications
